Explore engineering-driven PCB and SMT case studies that show how YourPCB supports repair recovery, stack-up validation, failure analysis and fast-turn prototype delivery while protecting customer confidentiality.
Each case focuses on customer value: engineering judgment, process control, inspection evidence and fast communication that help sourcing and engineering teams make confident manufacturing decisions.
Controlled replacement and repair support helps customers recover urgent assemblies without exposing confidential project data.
Stack-up, microsection and manufacturability review reduce risk before high-layer PCB production.
X-Ray evidence and test-condition review help clarify possible causes behind abnormal PASS / FAIL results.
Rapid coordination supports urgent prototype validation and faster engineering decision-making.
YourPCB supports socket replacement and repair recovery through controlled rework, inspection discipline and delivery coordination, helping customers restore usability and protect project schedules.

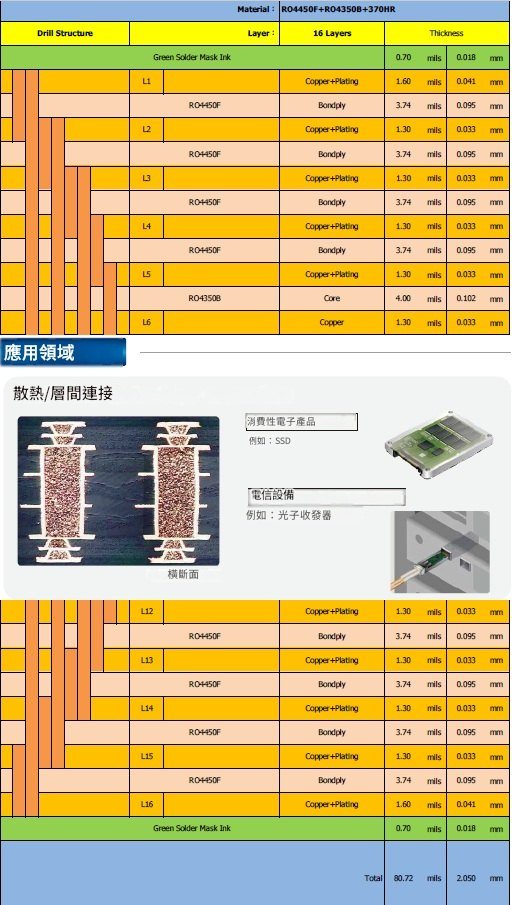

For high-layer PCB projects, YourPCB reviews stack-up design, material selection, drill structure, impedance targets and microsection evidence before production, helping customers reduce risk in advanced PCB manufacturing.
When test results show abnormal PASS / FAIL behavior, YourPCB uses X-Ray evidence, test criteria review and engineering analysis to narrow down root-cause direction and support corrective action.

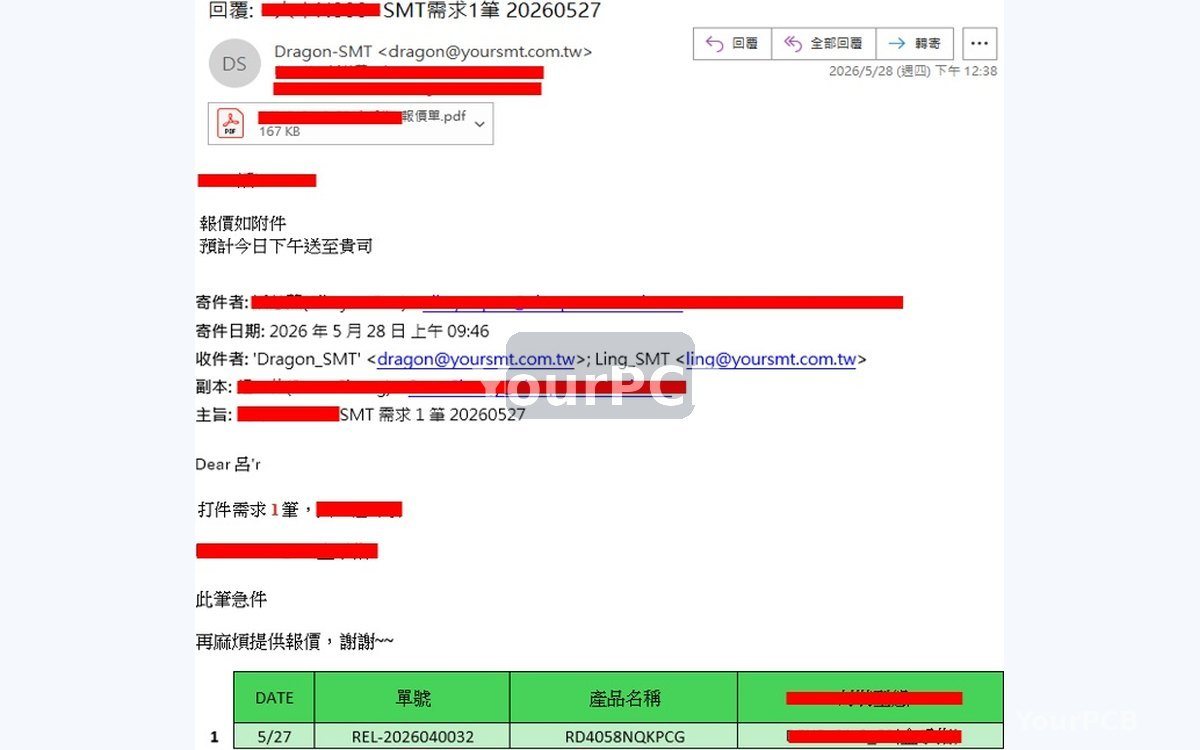

For urgent SMT prototype requirements, YourPCB coordinates pickup, assembly scheduling and delivery communication to support rapid engineering validation while keeping customer project information confidential.
Professional communication is part of manufacturing quality. YourPCB values transparent updates, responsible follow-up and long-term cooperation with engineering and purchasing teams.

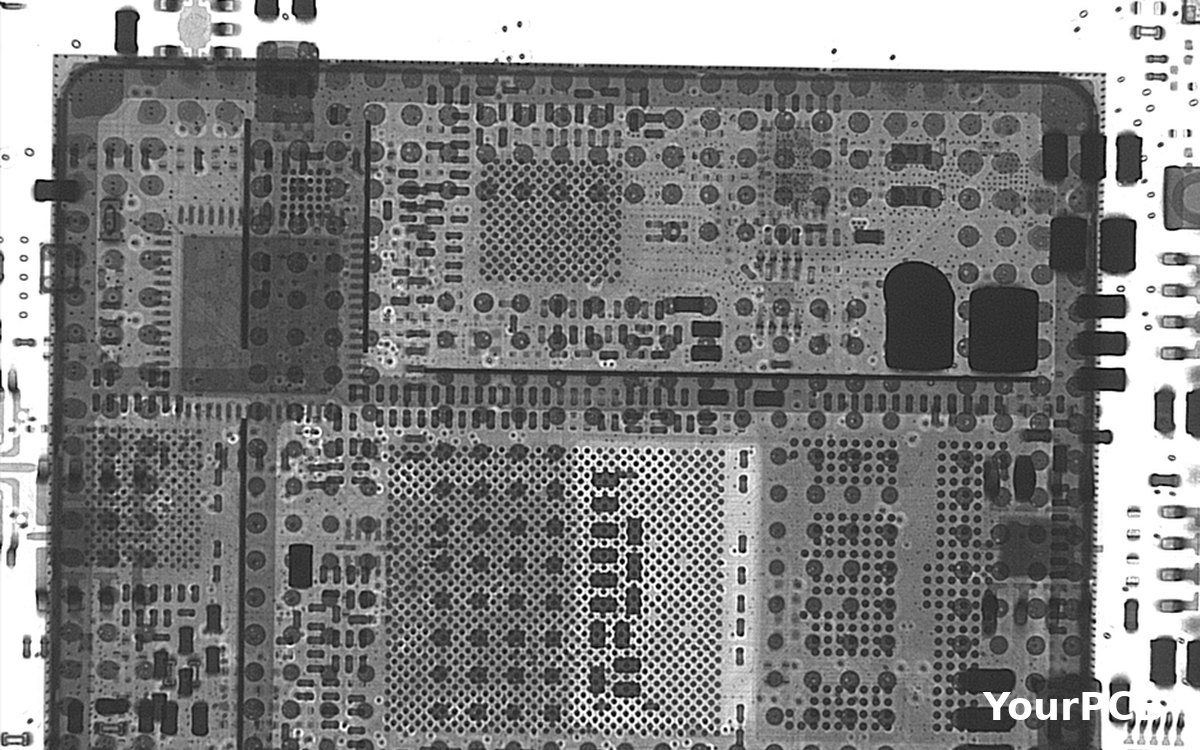

BGA and hidden solder joint quality cannot be judged by surface inspection alone. YourPCB uses X-Ray verification to support reliability-sensitive PCBA decisions.
A professional case study is not only a product photo. It connects the customer challenge, engineering action, inspection evidence and measurable value while keeping confidential data protected.
Describe the product environment, reliability requirement and sourcing pressure.
Clarify manufacturability, assembly, inspection or failure-analysis risk.
Show DFM/CAM review, controlled process, X-Ray/AOI/ICT or rapid coordination.
Connect the result to lower risk, faster validation, stable delivery or stronger quality evidence.
Upload Gerber, BOM, test requirements or repair information. YourPCB can review manufacturing risk, inspection needs and assembly feasibility before quotation.
