Gerber data is reviewed and converted into manufacturable production tooling for stable PCB fabrication.
PCB Factory Process
A transparent view of PCB fabrication workflow, from engineering data preparation to final inspection and packing.
Factory Overview
YourPCB PCB manufacturing facility
YourPCB’s Taoyuan manufacturing facility supports controlled PCB fabrication and engineering-driven production management, giving international buyers a transparent view of the team, processes and quality systems behind every board.
- 1–60 Layers PCB
- HDI / Multilayer / Heavy Copper
- Special Material & High Aspect Ratio PCB
- ISO 9001 / ISO 14001 / UL Recognition
CAM Engineering Review
Engineering review before PCB fabrication
Every PCB project begins with disciplined CAM verification and manufacturability review. YourPCB engineering teams examine production data before fabrication to reduce process risk, improve yield stability and support reliable transition from prototype to volume production.
- Gerber and mechanical outline review
- Panelization and tooling preparation
- Manufacturability risk reduction
- Production-ready CAM output
PCB Production Flow
From CAM engineering to final packing
YourPCB integrates CAM engineering, controlled fabrication, inspection and final verification into a disciplined PCB manufacturing workflow built for global OEM, ODM and EMS requirements.
- 01CAM Engineering
- 02Material Preparation
- 03Surface Cleaning
- 04Dry Film Lamination
- 05Exposure Process
- 06Developing
- 07Etching Line
- 08Circuit Pattern Control
- 09Multilayer Lamination
- 10Precision Drilling
- 11Copper Plating
- 12Solder Mask Coating
- 13Solder Mask Imaging
- 14Silkscreen Printing
- 15CNC Routing
- 16Profile Finishing
- 17V-Cut Scoring
- 18Electrical Testing
- 19Final E-Test Verification
- 20Test Fixture Preparation
- 21Fixture-Based QA
- 22Dimensional Inspection
- 23Microsection Analysis
- 24Final Packing
CAM

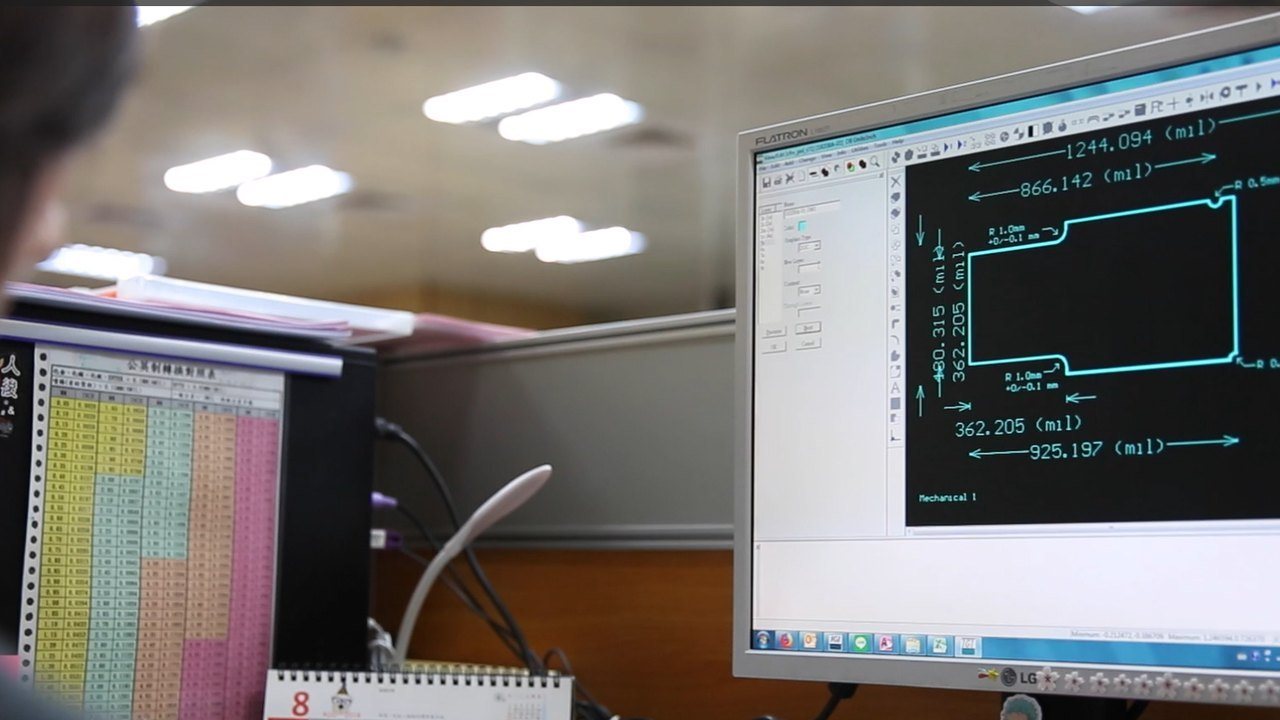

CAM Operation Review
CAM operators verify board outline, routing data, tooling references and production parameters before releasing files to manufacturing.
02

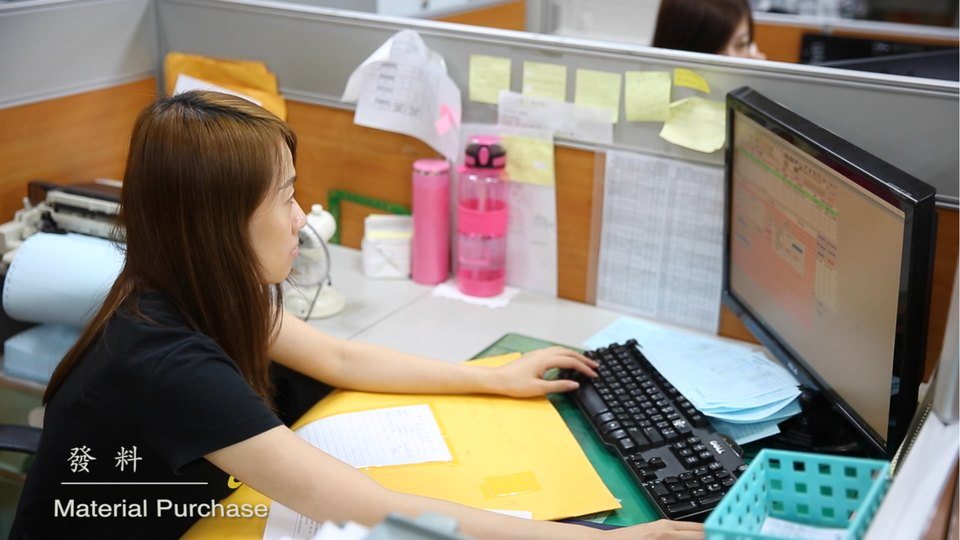

Material Preparation
Qualified laminates, copper foils and specialty materials are prepared according to customer specifications.
03

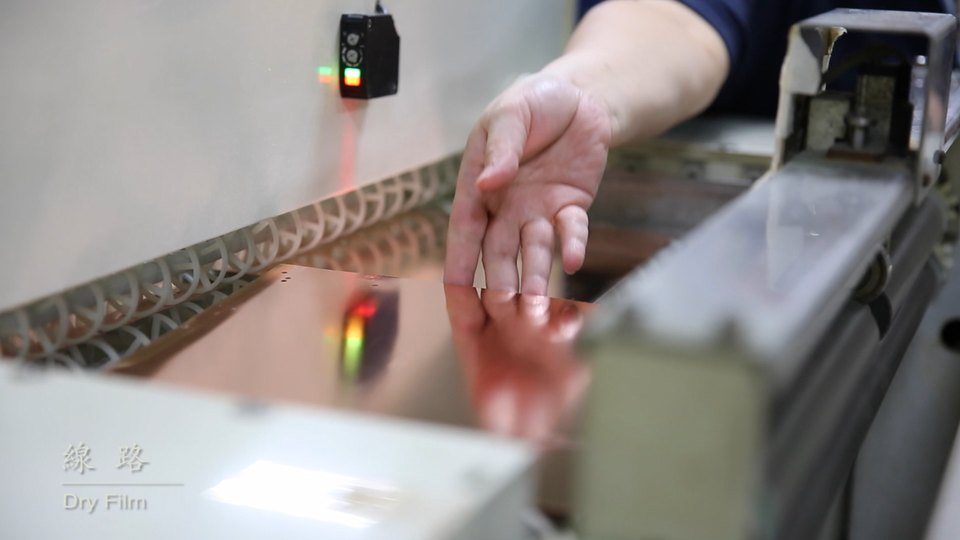

Surface Cleaning
Panel surfaces are cleaned before imaging to improve adhesion and reduce pattern defects.
04

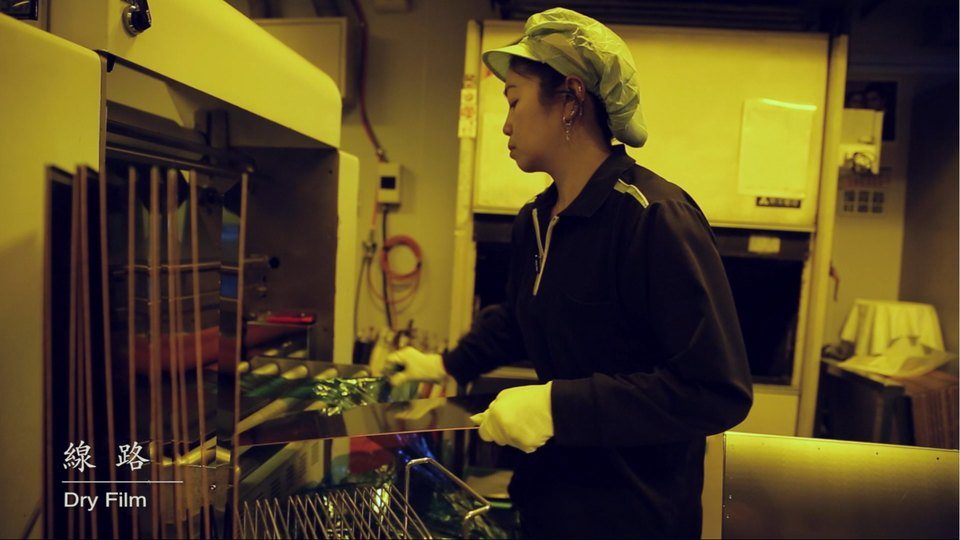

Dry Film Lamination
Photoresist film is laminated onto the copper surface for precise circuit pattern transfer.
05

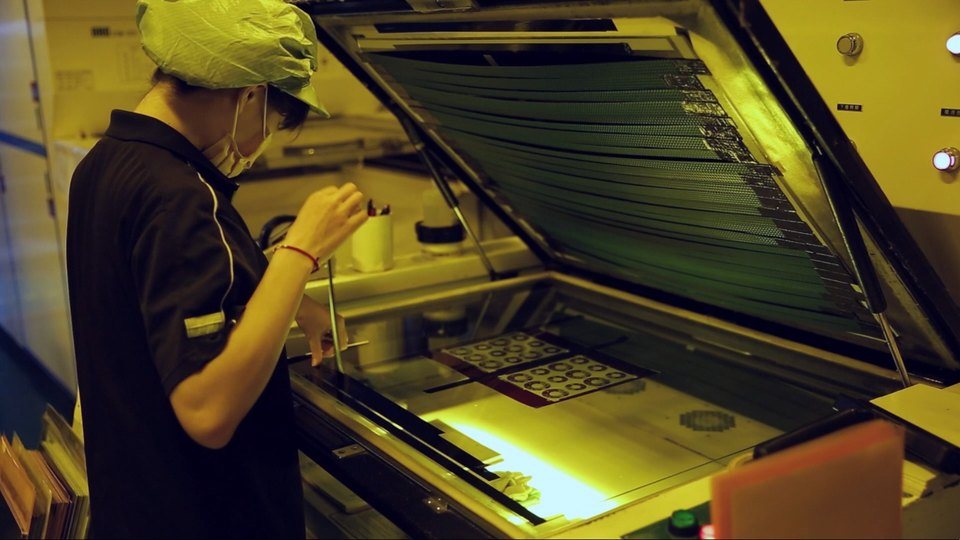

Exposure Process
Circuit patterns are exposed with controlled energy to maintain trace accuracy and repeatability.
06

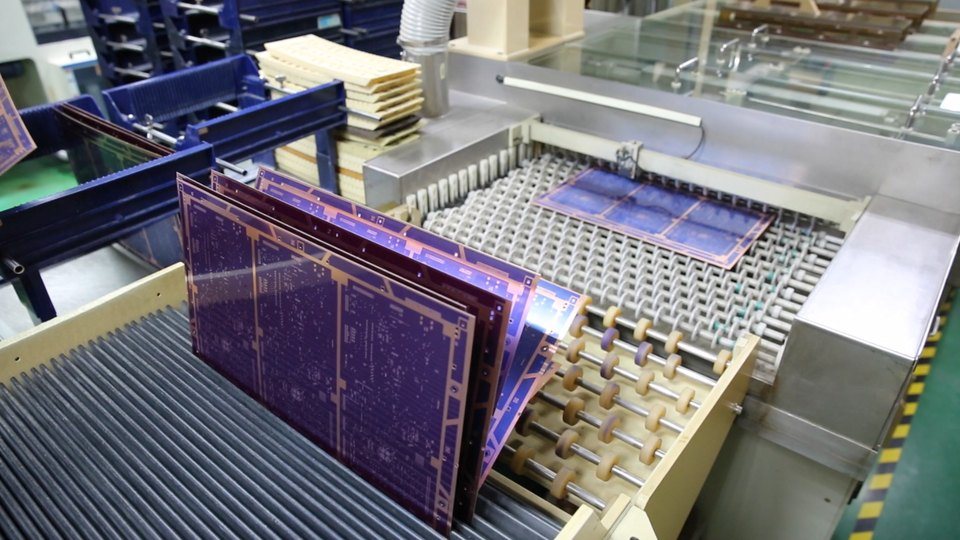

Developing
Unexposed areas are developed to reveal the required copper circuit pattern.
07

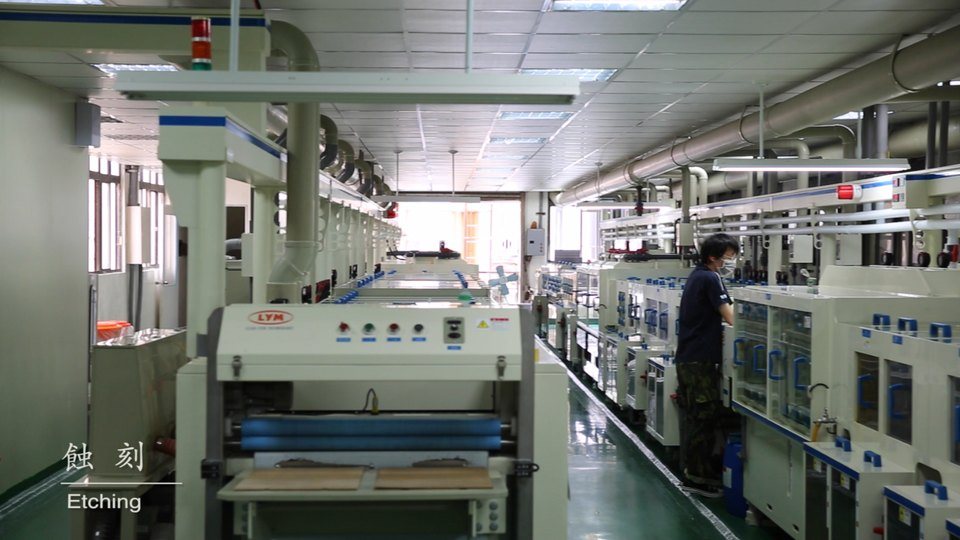

Etching Line
Unwanted copper is removed to form accurate circuit traces for multilayer and advanced PCB designs.
08

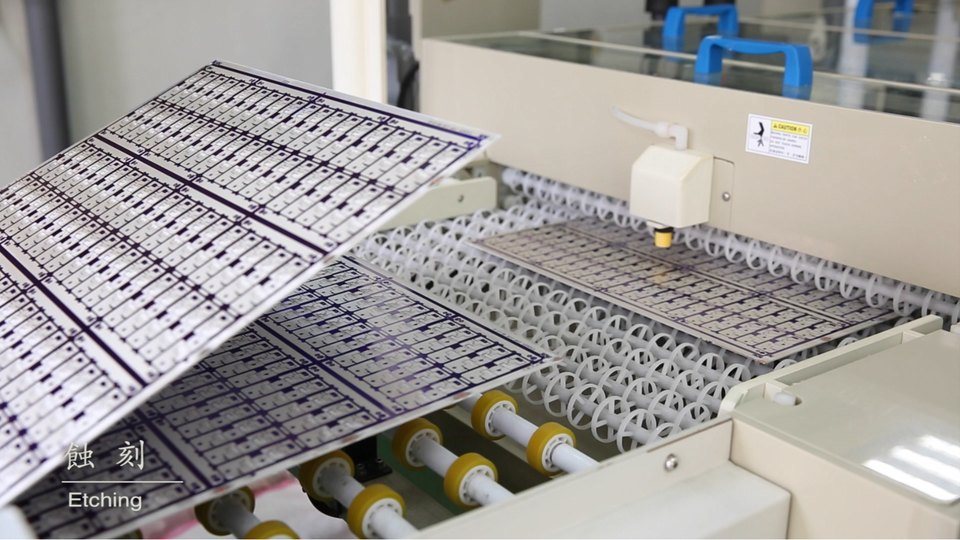

Circuit Pattern Control
Process parameters are controlled to maintain consistent trace width and spacing.
09

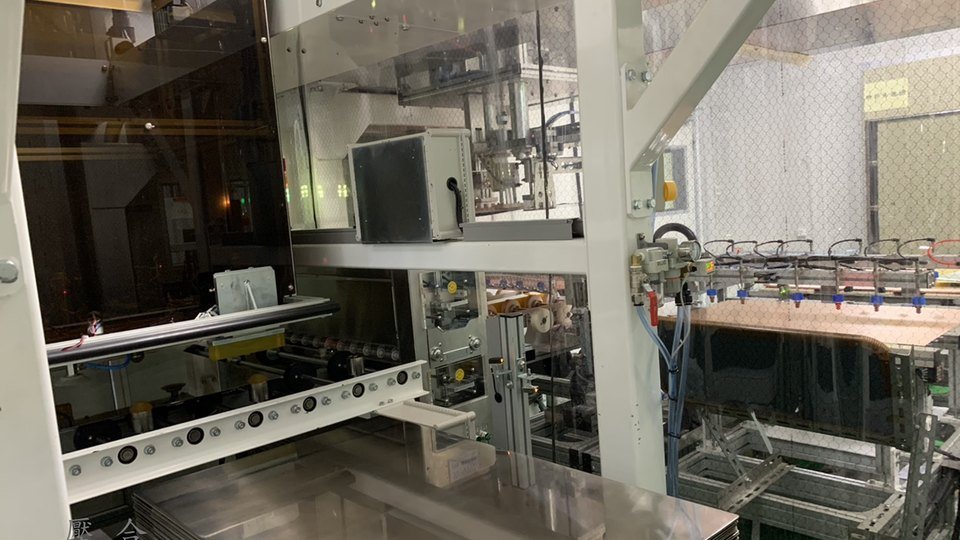

Multilayer Lamination
Inner layers are stacked and laminated under controlled pressure and temperature for multilayer PCB reliability.
10

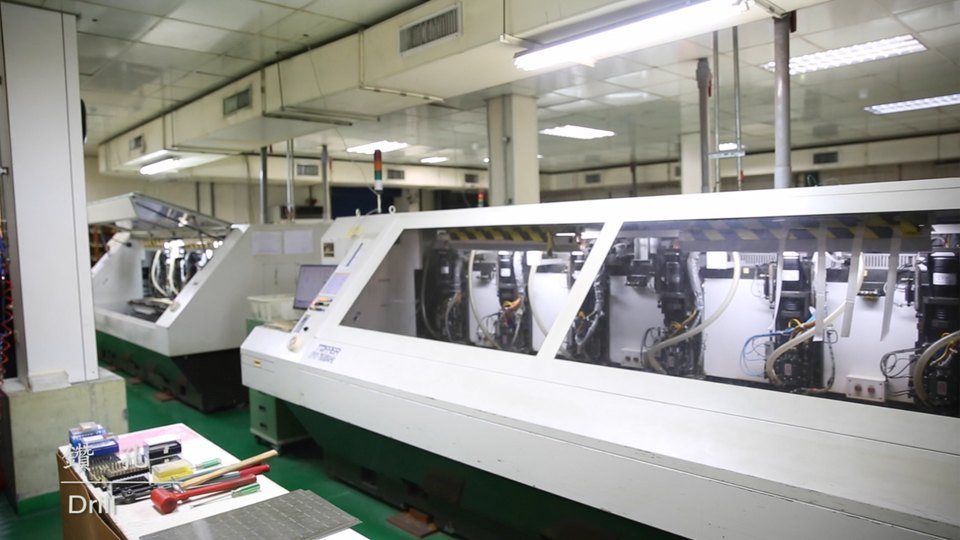

Precision Drilling
Mechanical drilling creates through holes and vias with stable registration for plating and interconnection.
11

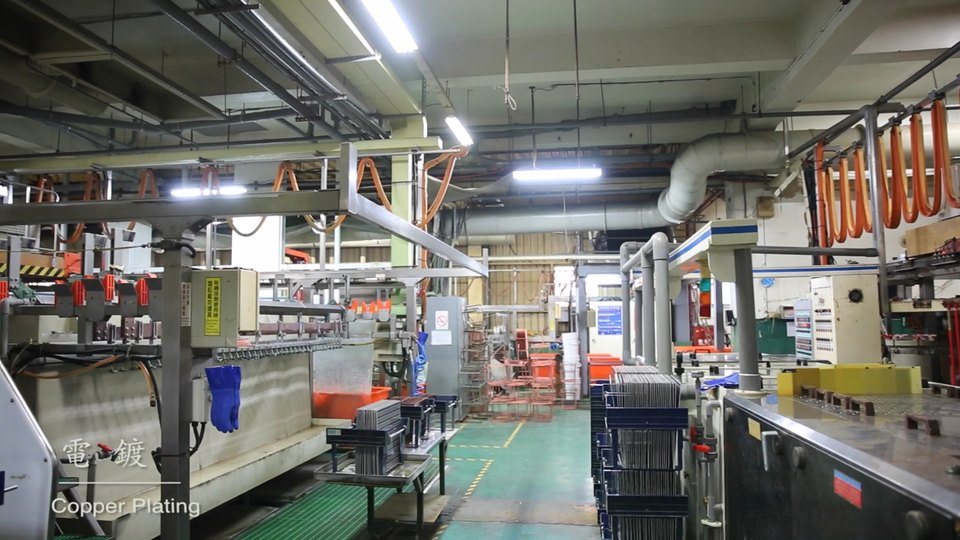

Copper Plating
Copper plating builds reliable electrical connections through vias and plated through holes.
12

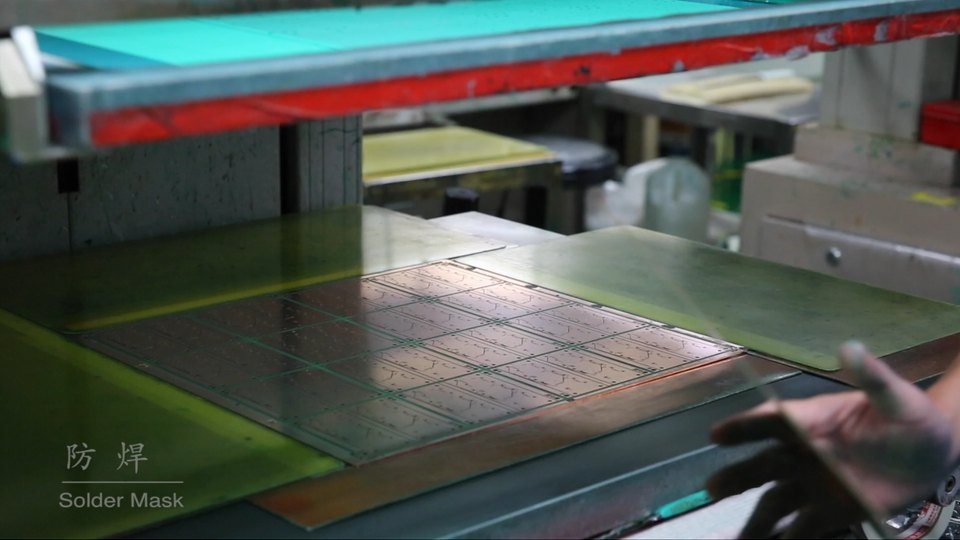

Solder Mask Coating
Solder mask is applied to protect copper circuits and improve assembly reliability.
13

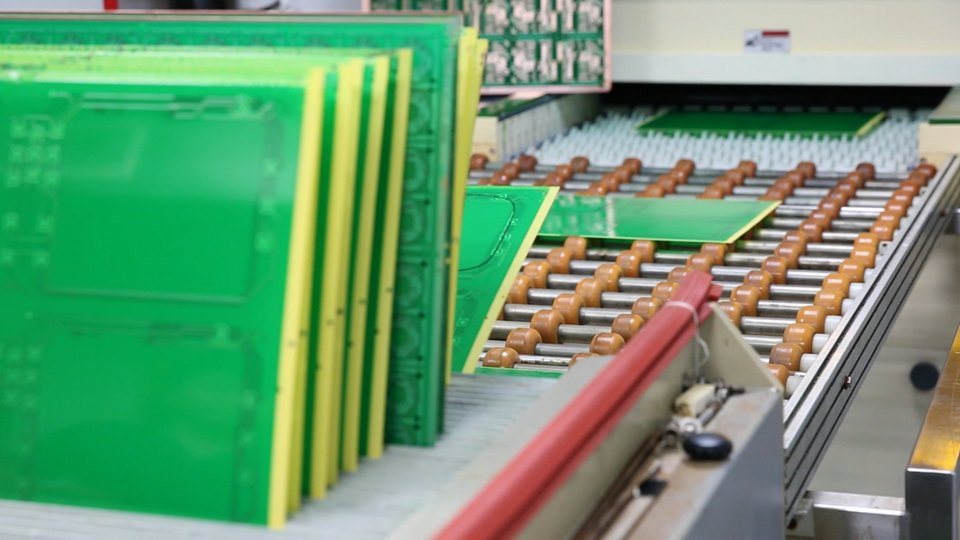

Solder Mask Imaging
Solder mask openings are defined for pads, vias and assembly areas according to design requirements.
14

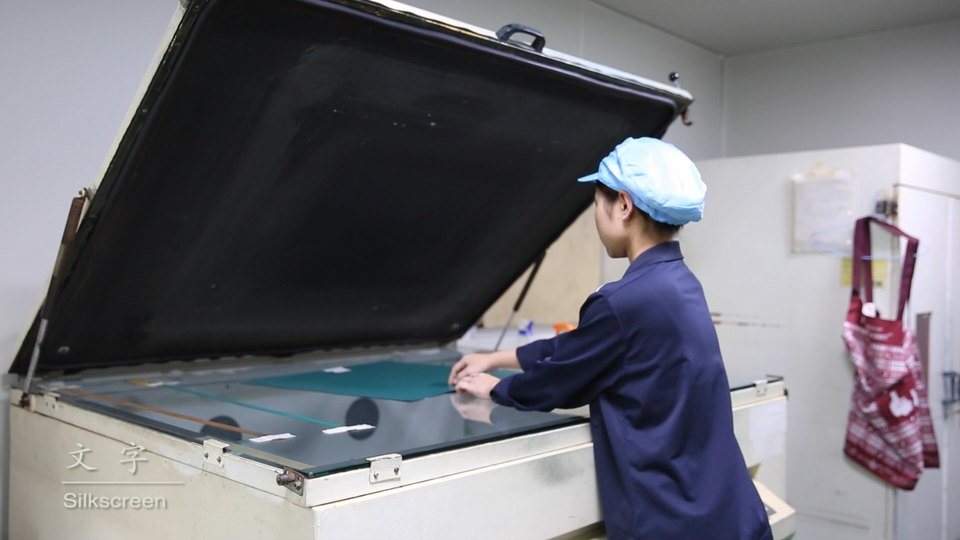

Silkscreen Printing
Legends, polarity marks and identifiers are printed for assembly and inspection traceability.
15

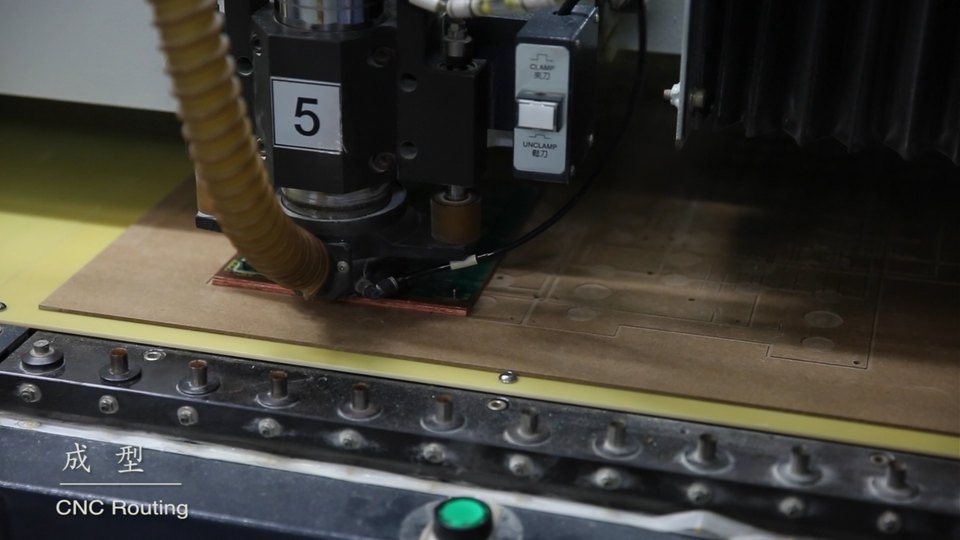

CNC Routing
Panels are routed to final board dimensions with controlled edge quality.
16

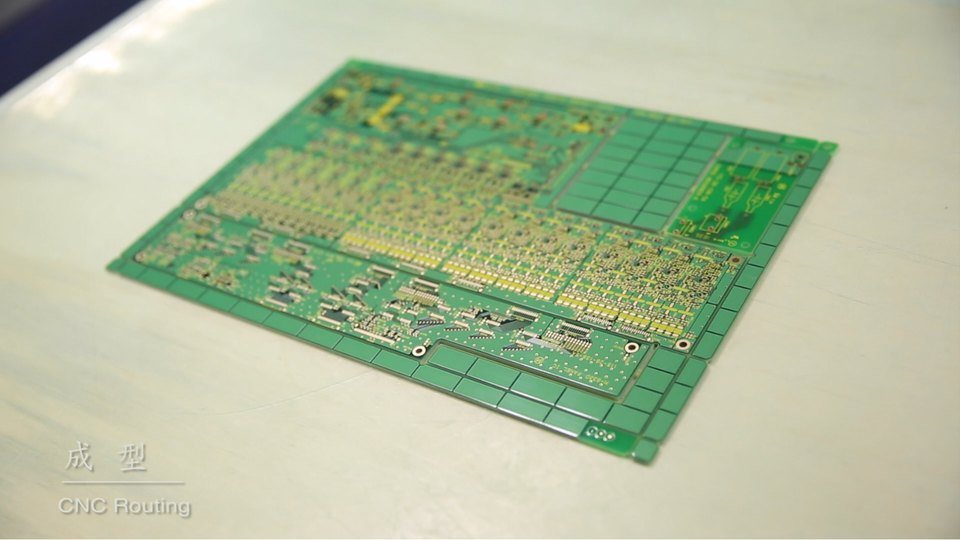

Profile Finishing
Final profiling supports complex board outlines and customer-specific mechanical requirements.
17
V-Cut Scoring
V-cut scoring enables efficient panel separation while maintaining assembly handling strength.
18

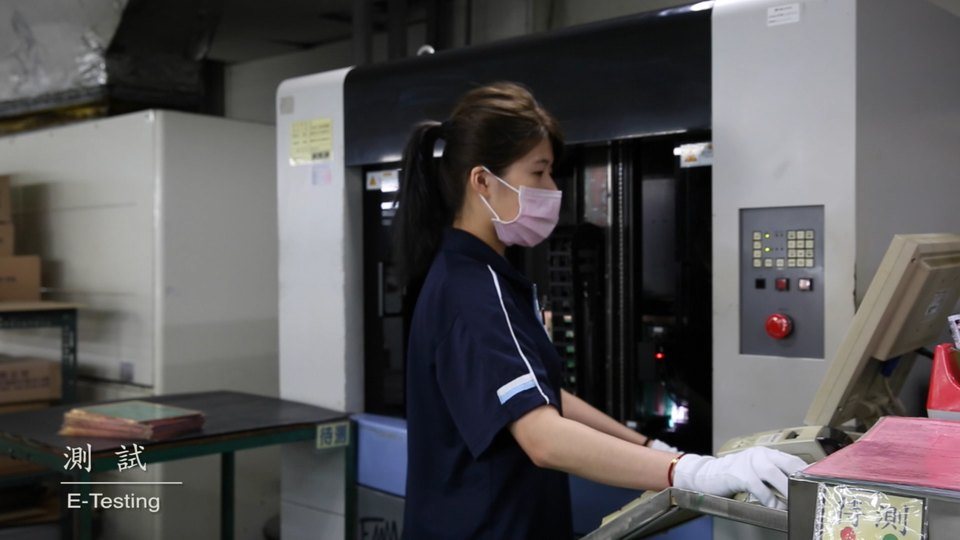

Electrical Testing
Electrical testing verifies open and short circuits before shipment to reduce assembly risk.
19

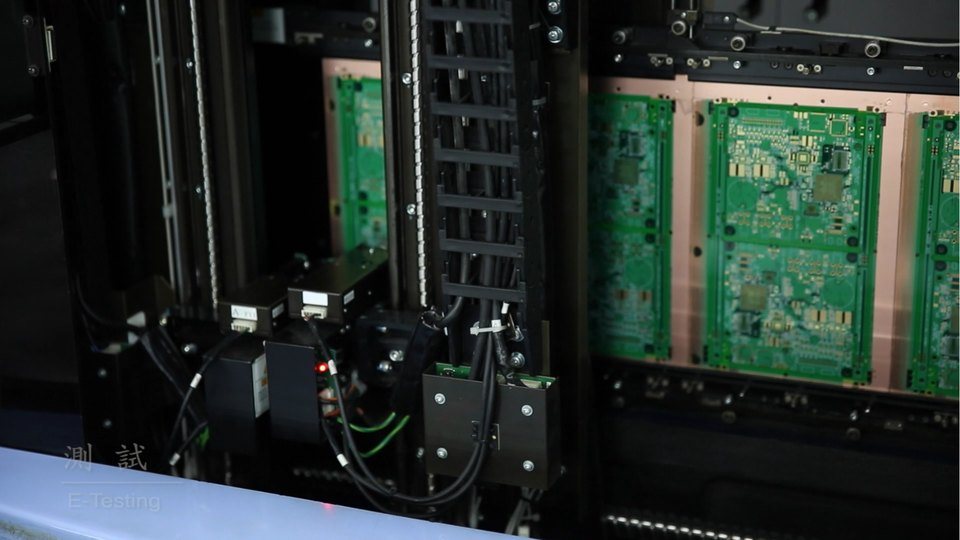

Final E-Test Verification
Test programs and fixtures support reliable verification for production panels.
20

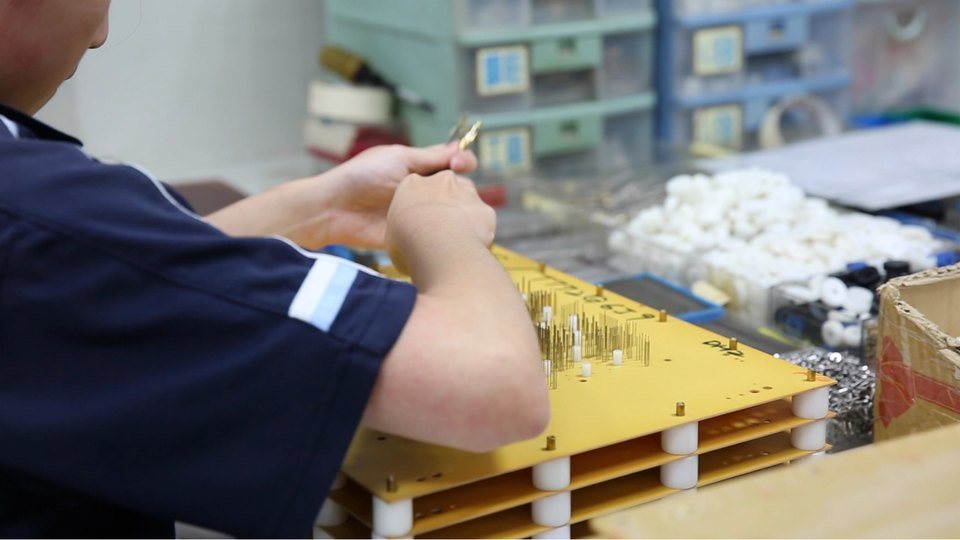

Test Fixture Preparation
Dedicated fixtures improve testing consistency for repeat production and quality control.
21

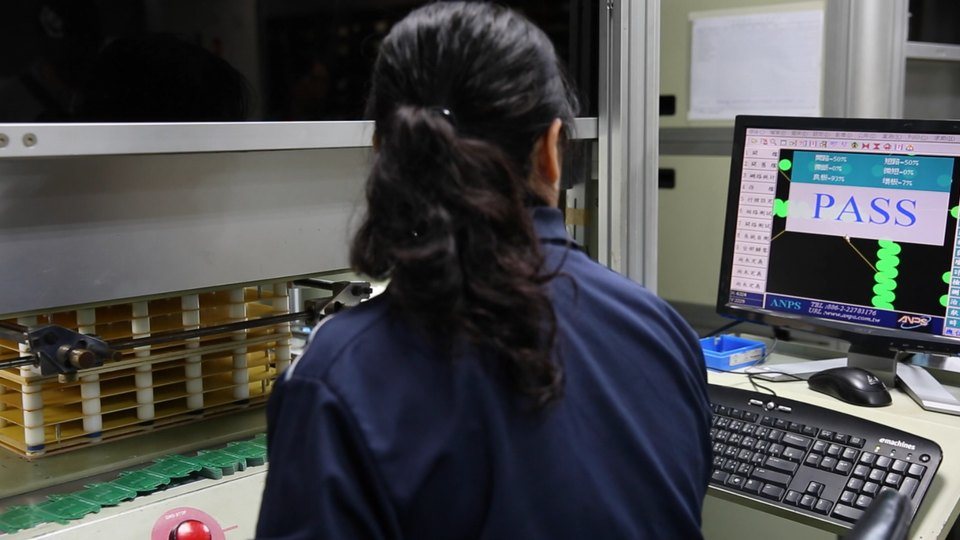

Fixture-Based QA
Fixture-based inspection supports stable quality validation before packing.
22

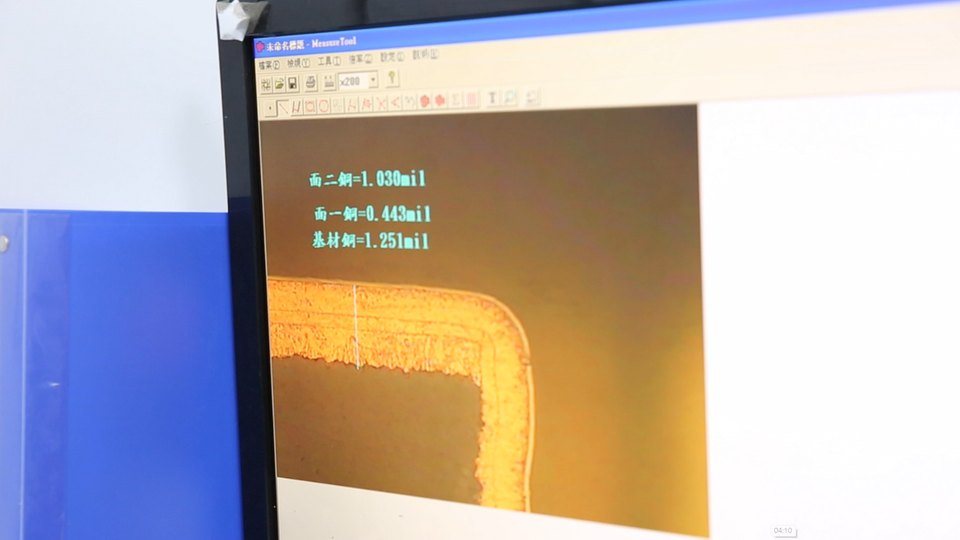

Dimensional Inspection
Critical dimensions are measured to verify mechanical accuracy and production consistency.
23

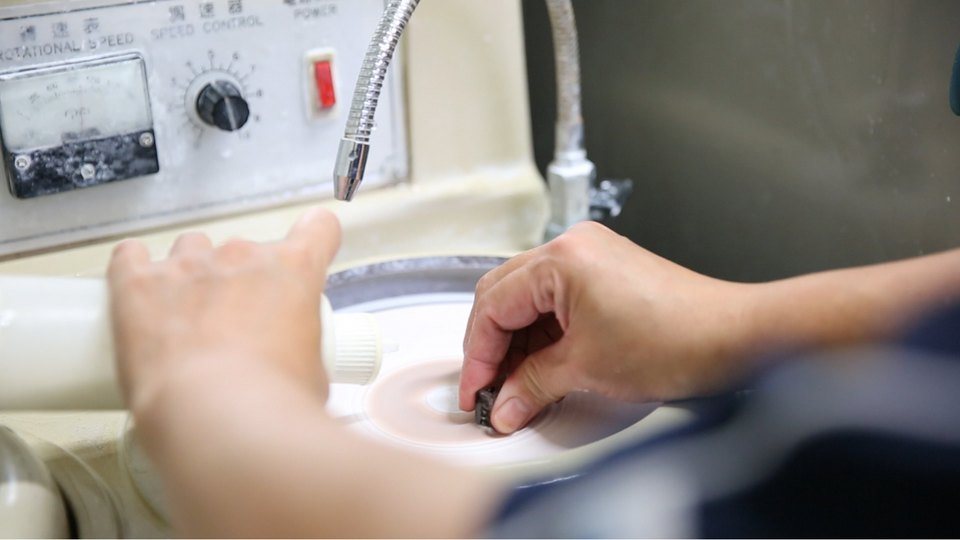

Microsection Analysis
Microsection inspection checks plating thickness, hole quality and internal structure reliability.
24

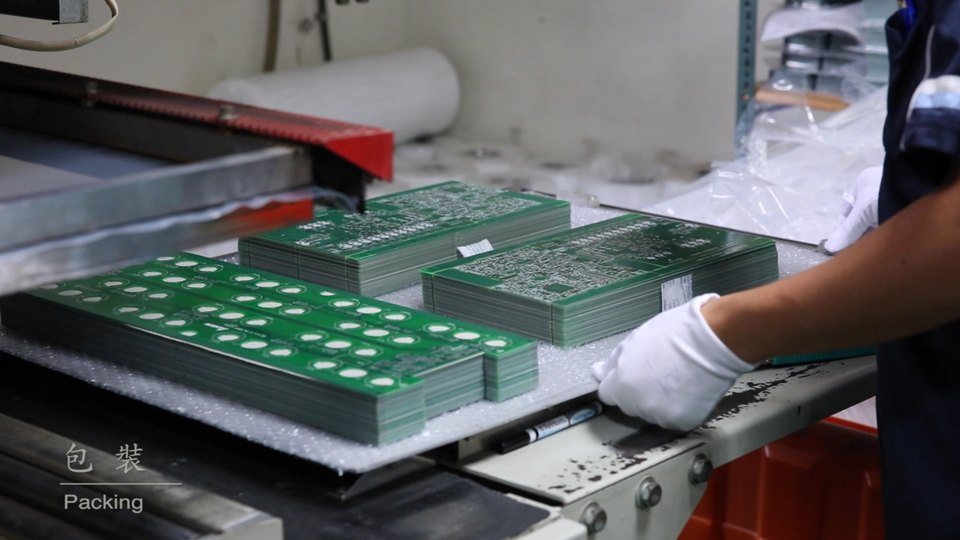

Final Packing
Finished PCBs are protected and packed for safe domestic or international shipment.
PCB Certifications
Certified PCB manufacturing support
ISO 9001, ISO 14001 and UL recognition strengthen buyer confidence by connecting factory capability with documented quality and compliance management.
Engineering Support
Send your PCB files for DFM review
Upload Gerber, stack-up and production requirements. Our team can review manufacturability, surface finish, material and testing requirements.
