SMT Production Line
A real SMT production line demonstrates placement capacity, process discipline and stable assembly control for 01005, fine-pitch IC and BGA projects.
SMT Assembly Capability
Precision SMT assembly, inspection, repair and testing support for demanding PCBA projects.
SMT Capability
01005 components to advanced repair support
- 01005 Components
- BGA Assembly
- DIP Assembly
- AOI Inspection
- X-Ray Inspection
- Conformal Coating
- ICT Support
- VIP PAD Repair
- PCB & IC Reballing
- Socket Replacement
- Programming & Test
SMT Process Capability
SMT process capability table
YourPCB provides a transparent SMT capability overview covering board size, SPI, precision placement, reflow, inspection and engineering support to help buyers evaluate assembly feasibility before RFQ.
| Process Category | Item | Standard Capability | Advanced Capability | Engineering Notes |
|---|---|---|---|---|
| PCB Size Limits | Minimum PCB Size | 50 x 50 mm | 30 x 30 mm | Panelization is recommended below this size for stable production. |
| PCB Size Limits | Maximum PCB Size | 460 x 460 mm | 460 x 700 mm | Supports large-format boards such as server boards and LED strip boards. |
| PCB Size Limits | PCB Thickness Range | 0.4 mm - 3.0 mm | 0.2 mm - 6.0 mm | Covers ultra-thin FPC and thick multilayer assemblies. |
| Solder Paste Printing (SPI) | Minimum Stencil Printing Pitch | 0.40 mm | 0.30 mm | Critical for precise solder paste control on fine-pitch components. |
| Solder Paste Printing (SPI) | 3D SPI Solder Paste Inspection | Available (area / volume / height / bridging) | Available (closed-loop feedback to printer) | Inline inspection after printing helps prevent a high percentage of soldering defects. |
| SMT Placement Capability | Minimum Chip Component | 0402 (1005 Metric) | 01005 | Supports miniaturized assemblies for wearable and compact electronics. |
| SMT Placement Capability | Maximum Mountable Component | 45 x 45 mm | 150 x 50 mm (長連接器) | Covers large or odd-form components and connectors. |
| SMT Placement Capability | Minimum Lead Pitch (QFP) | 0.40 mm | 0.30 mm | Supports fine-pitch IC placement accuracy. |
| SMT Placement Capability | Minimum Ball Pitch (BGA) | 0.50 mm | 0.25 mm | Defines process capability for BGA and CSP packages. |
| SMT Placement Capability | Placement Accuracy (3 sigma) | ± 40 um | ± 30 um | Supports high-precision packages with advanced alignment control. |
| Reflow Soldering | Reflow Heating Zones | 8 溫區 | 10 溫區 | More heating zones enable more accurate thermal profile control. |
| Reflow Soldering | Nitrogen Reflow Soldering | No / optional | Line support (N2 <= 500 ppm) | Reduces oxidation during lead-free soldering and improves solderability. |
| Reflow Soldering | Double-Sided Reflow Process | Supported | Supported (including adhesive fixing for second reflow) | Supports process control when heavy components are mounted on both sides. |
| Quality Inspection (QC) | 3D AOI Inspection | Available (3D optical inspection) | Available (full-line 3D AOI) | Inspects missing parts, polarity, wrong parts and insufficient solder. |
| Quality Inspection (QC) | X-Ray Inspection | Available (offline sampling inspection) | Available (3D CT X-Ray / automated inspection) | Used to inspect BGA voiding and hidden solder-joint defects. |
| Quality Inspection (QC) | First Article Inspection (FAI) | Manual multimeter measurement | Automatic FAI system (LCR comparison) | Prevents incorrect reel loading during line setup. |
| Quality Inspection (QC) | Electrical Functional Test | Fixture test (FCT) | FCT + flying probe + ICT circuit test | Open/short and functional verification according to customer specifications. |
| Production & Engineering Support | Special Process Capability | Lead-free process | Underfill / dispensing process | Improves BGA vibration resistance and moisture/corrosion protection. |
| Production & Engineering Support | Fast Prototype Build | 3 - 4 days | 24 - 48 hours | Fast response for NPI and prototype phases. |
| Production & Engineering Support | Production Volume Flexibility | Small to medium-volume production | Prototype to mass production | Flexible line changeover from prototype to volume production. |
| Production & Engineering Support | DFM Engineering Review | Basic manufacturability review | Full DFM optimization report | Identifies component opening, pad and manufacturability issues before production. |
SMT Process Control
Inspection data and operator judgment behind every build
YourPCB integrates 3D SPI, 3D AOI, X-Ray and printing process control to verify solder paste quality, placement condition and hidden solder-joint reliability throughout SMT production.

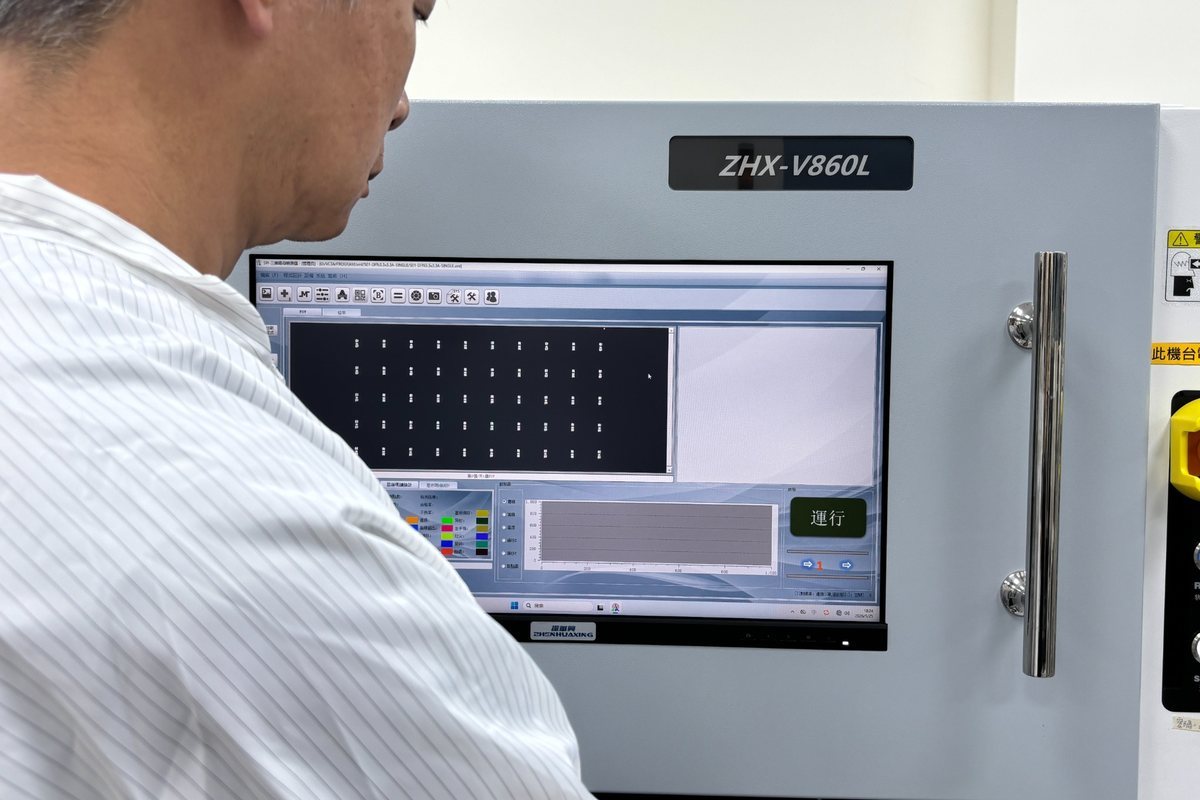

3D SPI Solder Paste Inspection
Controls paste volume, area, height and offset before placement to improve first-pass yield.

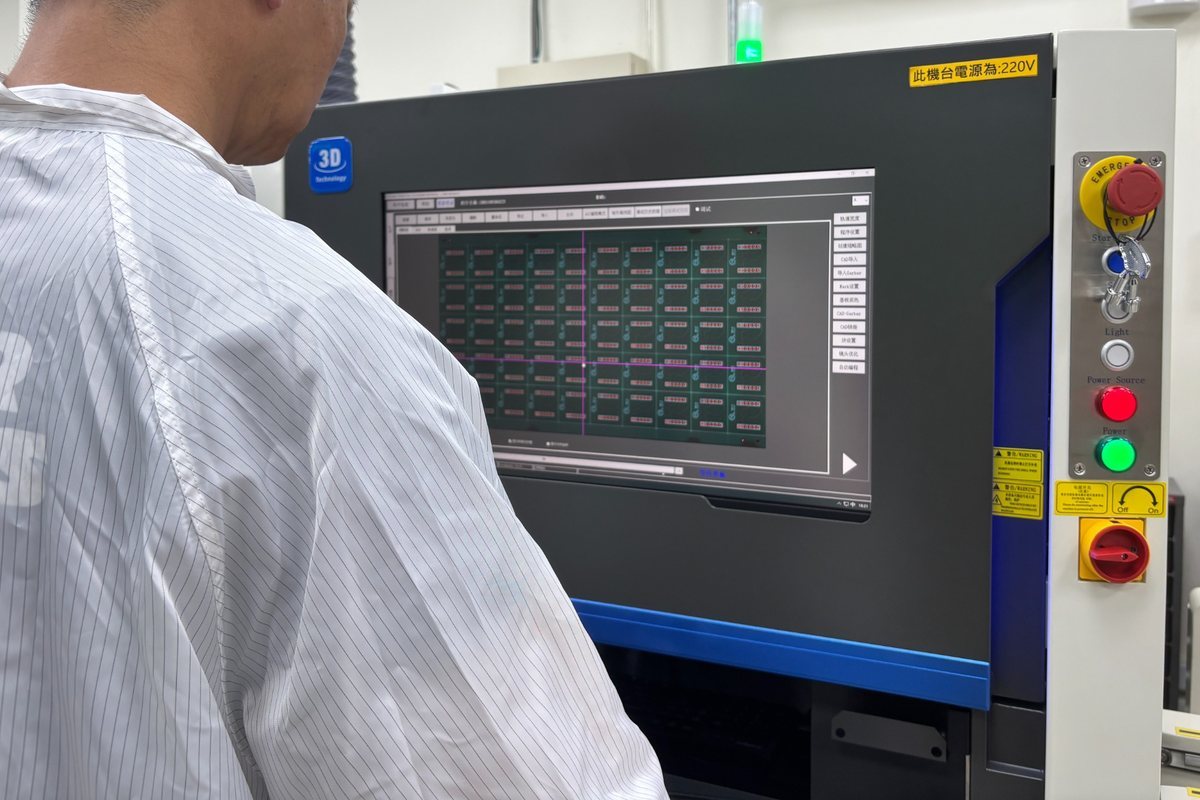

3D AOI Review
Confirms polarity, missing parts, solder shape and placement condition after reflow.

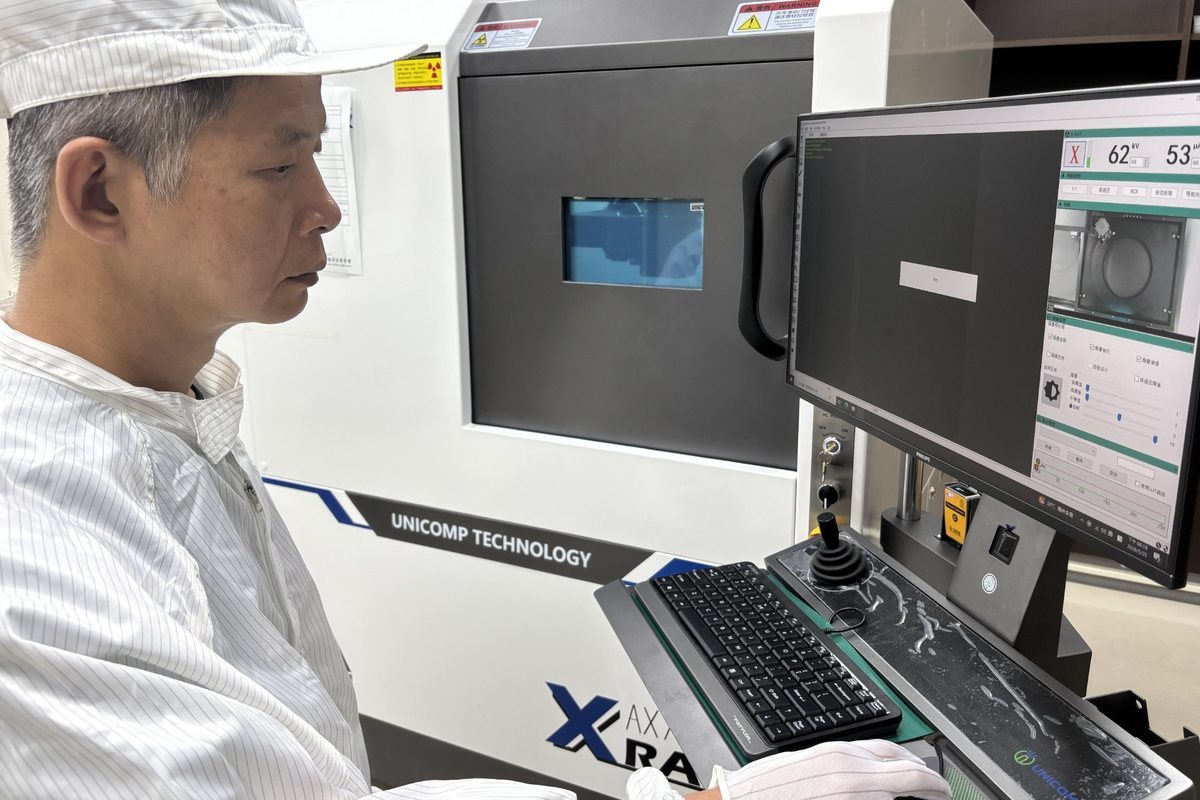

X-Ray Inspection
Verifies BGA, QFN and hidden solder joints that cannot be confirmed visually.

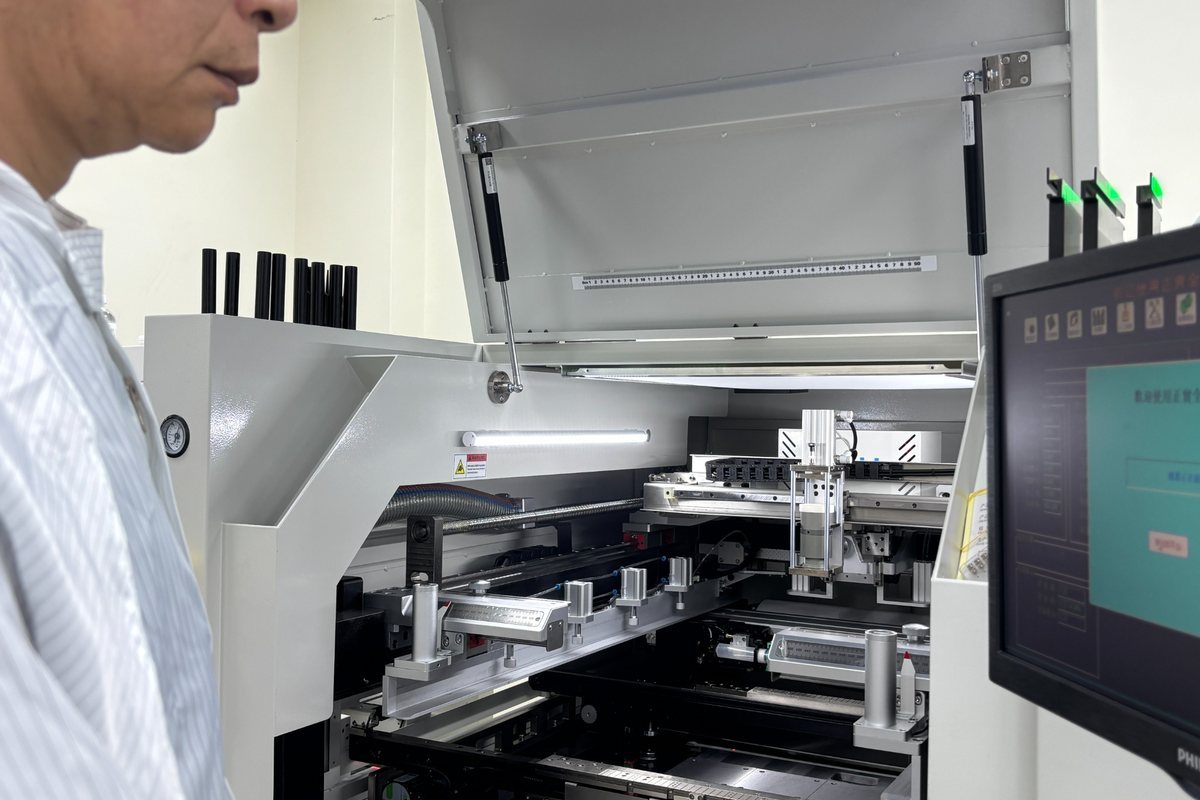

Printing Setup
Stable stencil alignment and printing setup are the foundation of high-reliability SMT assembly.
Process
SMT assembly workflow
BOM Review
Stencil
Solder Paste
Pick & Place
Reflow
AOI / X-Ray
Test
Programming & Functional Test
Programming and functional verification before shipment
YourPCB supports assembly validation, fixture-based testing and customer-specific verification beyond SMT placement, helping customers reduce risk before shipment.
Programming Test Setup
Fixture-based programming and test setup supports firmware loading, interface verification and repeatable customer-specific PCBA validation.

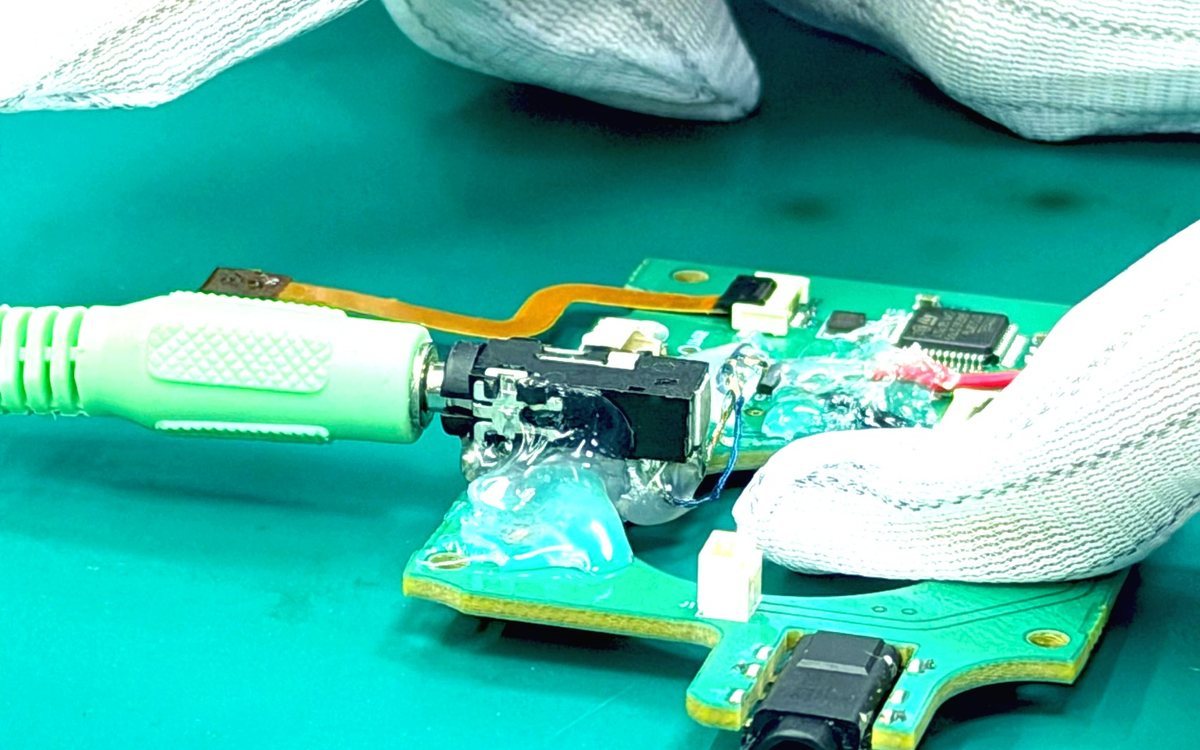

Functional Test Operation
Functional test operation verifies product behavior under real operating conditions and helps reduce field failure risk before delivery.
