Engineering-driven capability
Multilayer PCB projects require stable stack-up planning, impedance consideration, drilling accuracy and electrical verification before shipment.

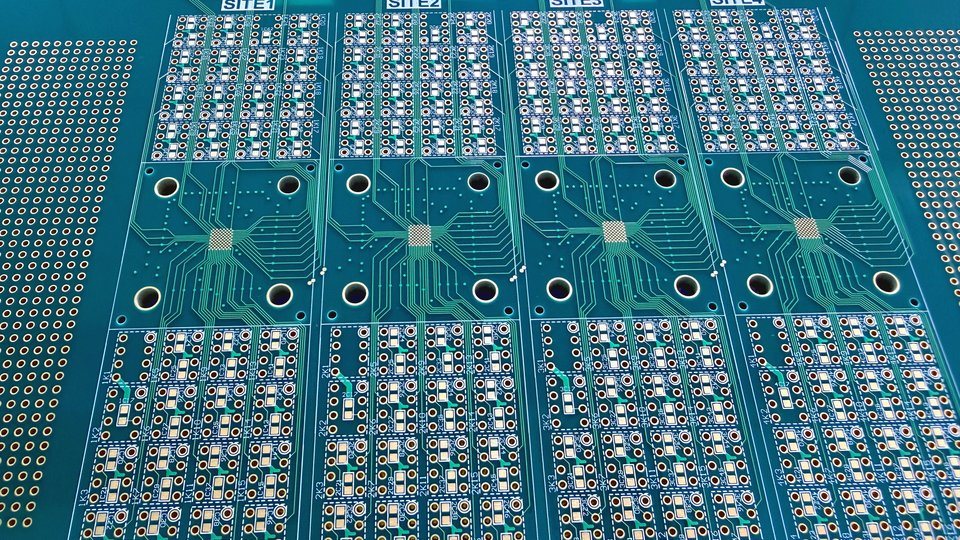

Multilayer PCB Manufacturing
1–60 layer PCB capability for complex industrial, telecom and high-density electronics.
Focused Capability
Why buyers choose YourPCB
- 1–60 layer PCB manufacturing capability
- Stack-up and DFM review support
- Electrical testing before shipment
- Suitable for industrial and communication electronics
RFQ Guidance
Files recommended for engineering review
Gerber / ODB++, BOM, Pick & Place, stack-up, quantity, surface finish and test requirements help the team respond faster and more accurately.
Engineering FAQ
Questions buyers ask before RFQ
These answers help engineering and sourcing teams prepare a more accurate PCB / SMT quotation package.
What information should be provided for review?
Please provide Gerber or ODB++, stack-up, BOM, Pick & Place, drawings, quantity, surface finish, test requirements and target lead time.
How does YourPCB reduce production risk?
Our process combines DFM / DFA review, CAM engineering, controlled manufacturing, AOI / SPI / X-Ray inspection and programming or functional test when required.
